IZ6450A Datasheet - Integral

DOT MATRIX LCD DRIVER

IZ6450A Features

* give the designer a flexible means of implementing small to medium size LCD displays for compact, low power systems. IZ6450A drive 16 lines of 61 characters each. IZ6451A operates only 80 columns LCD and works under control of IZ6450A. Two IZ6450A can be used for control of LCD with rows number more

IZ6450A General Description

IZ6450A, IZ6451A DOT MATRIX LCD DRIVER IZ6450/IZ6451 are dot matrix LCD (Liquid Crystal Display) drivers, designed for the display of characters and graphics. The drivers generate LCD drive signals derived from bit mapped data stored in an internal RAM. Design of ICs driver provides very low power.

IZ6450A Datasheet (238.40 KB)

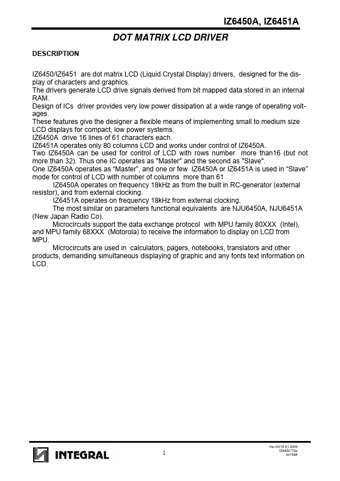

IZ6450A Datasheet Preview — Preview of IZ6450A PDF

Datasheet Details

Part number:

IZ6450A

Manufacturer:

Integral

File Size:

238.40 KB

Description:

Dot matrix lcd driver.
