IZ6B595 - POWER LOGIC 8-BIT SHIFT REGISTER

Integral

📥 Download Datasheet

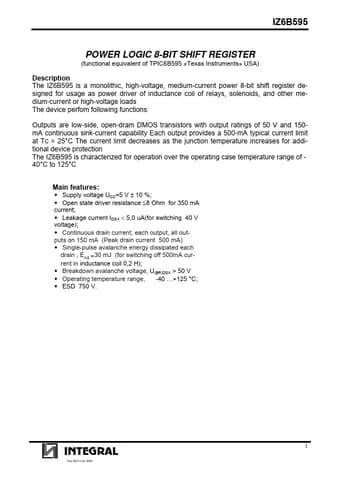

IZ6B595 Datasheet Preview — Preview of IZ6B595 PDF

Datasheet Details

Part number: IZ6B595
Manufacturer: Integral
File Size: 194.91 KB
Datasheet: IZ6B595-Integral.pdf
Description: POWER LOGIC 8-BIT SHIFT REGISTER

IZ6B595 Product details

Description

The IZ6B595 is a monolithic, high-voltage, medium-current power 8-bit shift register designed for usage as power driver of inductance coil of relays, solenoids, and other medium-current or high-voltage loads The device perfom following functions: Outputs are low-side, open-dram DMOS transistors with output ratings of 50 V and 150mA continuous sink-current capability Each output provides a 500-mA typical current limit at TC = 25°C The current limit decreases as the junction temperature increases

Features

Supply voltage UCC=5 V ± 10 %;.
Open state driver resistance ≤8 Ohm for 350 mA current;.
Leakage current IDSX < 5,0 uA(for switching 40 V voltage);.
Continuous drain current, each output, all outputs on 150 mA (Peak drain current 500 mA).
Single-pulse avalanche energy dissipated each drain , EAS =30 mJ (for switching off 500mA current in inductance coil 0,2 H);.
Breakdown avalanche voltage, U(BR)DSX > 50 V.
Operating temperature ra.
