IZ7066 Datasheet - Integral

IZ7066 - LCD Controller

Microcircuit IZ7066 performs the functions of controller and matrix liquid crystal display driver, displaying the signs and symbols.

All functions, which are necessary for control of the matrix LCD, are realized on the single chip.

I N TEGRAL 1 IZ7066 Functional Description Controller of the l

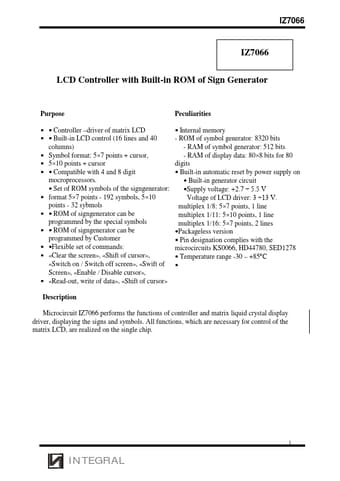

IZ7066 IZ7066 LCD Controller with Built-in ROM of Sign Generator Purpose Peculiarities Controller driver of matrix LCD Internal memory Built-in LCD control (16 lines and 40 - ROM of symbol generator 8320 bits columns) - RAM of symbol generator 512 bits Symbol format: 57 points  cursor, - RAM of display data 808 bits for 80 510 points  cursor digits Compatible with 4 and 8 digit Built-in automatic reset by

IZ7066 Features

* 10

* 80

* 10

* 500

IZ7066-Integral.pdf
