IZ7010

CIRCUIT FOR ELECTRON PEDOMETER - ERGOMETER

IZ7010 Datasheet (500.64 KB)

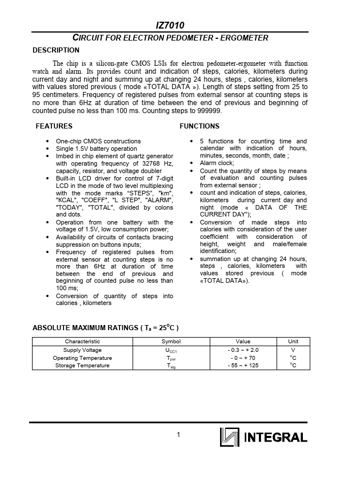

Preview of IZ7010 PDF Datasheet

Datasheet Details

Part number:

IZ7010

Manufacturer:

Integral

File Size:

500.64 KB

Description:

Circuit for electron pedometer - ergometer

IZ7010 Features

* FUNCTIONS

* One-chip CMOS constructions

* Single 1.5V battery operation

* Imbed in chip element of quartz generator with operating frequency of 32768 Hz, capacity, resistor, and voltage doubler

* Built-in LCD driver for control of 7-digit LCD in the mode of two level multiplexing w

IZ7010 General Description

The chip is a silicon-gate CMOS LSIs for electron pedometer-ergometer with function watch and alarm. Its provides count and indication of steps, calories, kilometers during current day and night and summing up at changing 24 hours, steps , calories, kilometers with values stored previous ( mode «TOT.
