IZD1520U

DOT MATRIX LIQUID CRYSTAL DISPLAY CONTROLLER & DRIVER

IZD1520U Features

* CMOS LSI chips

* Many command set

* Connection with CPU

* Total 80 (segment+common) drive sets Can be directly coupled with 80-port or 68-port system

* Low power consumption - 30ยตW maximum at 2kHz

* Available in chip form or in 100-pin plastic

IZD1520U General Description

* Power supply VDD - VSS : 2.4 to -7.0V VDD - V5 : 3.5 to -13.0V The IZD1520 family of dot matrix LCD (Liquid Crystal Display) drivers are designed for the display of characters and graphics. The drivers generate LCD drive signals derived from bit mapped data stored in an internal RAM. T.

IZD1520U Datasheet (217.92 KB)

Rating: 1 โ˜… (2 votes)

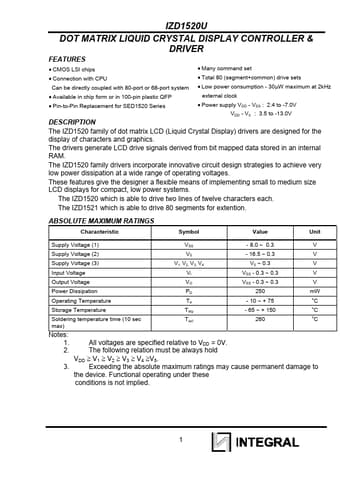

Preview of IZD1520U PDF

Datasheet Details

Part number:

IZD1520U

Manufacturer:

Integral

File Size:

217.92 KB

Description:

Dot matrix liquid crystal display controller & driver.
