IZD1520 Datasheet - IK Semiconductor

Dot Matrix Type

IZD1520 Features

* CMOS LSI chips

* Connection with CPU Can be directly coupled with 80-port or 68-port system w w

* Available in chip form or in 100-pin plastic QFP

* Pin-to-Pin Replacement for SED1520 Series at .D w h S a ee U 4 t m o .c

* Many command set TECHNI

IZD1520 General Description

The IZD1520 family of dot matrix LCD (Liquid Crystal Display) drivers are designed for the display of characters and graphics. The drivers generate LCD drive signals derived from bit mapped data stored in an internal RAM. The IZD1520 family drivers incorporate innovative circuit design strategies t.

IZD1520 Datasheet (363.09 KB)

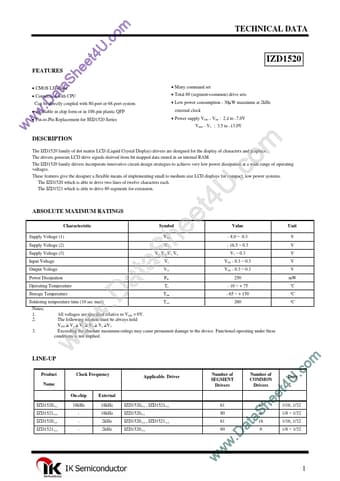

Preview of IZD1520 PDF
