M2086

VCSO FEC PLL WITH AUTOSWITCH FOR SONET/OTN

M2086 Features

* Integrated SAW delay line; Output of 15 to 700 MHz

* Low phase jitter < 0.5 ps rms typical (12kHz to 20MHz or 50kHz to 80MHz)

* LVPECL clock output (CML and LVDS options available)

* Pin-selectable PLL divider ratios support FEC ratios

* M2080/85: OTU1 (255/238) and O

M2086 General Description

The M2080/81/82 and M2085/86/87 are VCSO (Voltage Controlled SAW Oscillator) based clock PLLs designed for FEC clock ratio translation in 10Gb optical systems such as OC-192 or 10GbE. They support FEC (Forward Error Correction) clock multiplication ratios, both forward (mapping) and inverse (de-mapp.

M2086 Datasheet (501.80 KB)

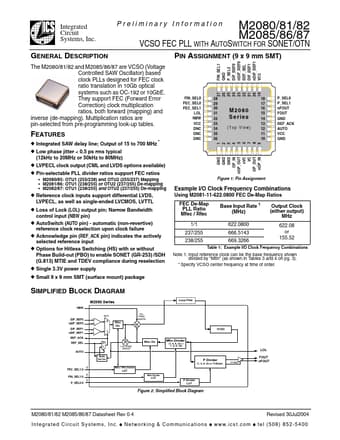

Preview of M2086 PDF

Datasheet Details

Part number:

M2086

Manufacturer:

Integrated Circuit Solution Inc

File Size:

501.80 KB

Description:

Vcso fec pll with autoswitch for sonet/otn.
Integrated Circuit Systems, Inc. Preliminary Information VCSO FEC PLL WITH AUTOSWITCH FOR SONET/OTN PIN ASSIGNMENT (9 x 9 mm SMT) FIN_SEL1 GND P_SEL.
