M208-A6

Contact Image Sensor Module

M208-A6 Features

* 2496 x 1 image sensing elements

* 600 dots per inch (dpi) resolution

* 105.6 mm scanning length

* 13 mm x 18 mm x 120 mm compact size

* No residual image

* Red LED light source

* light weight

* single 5 V power supply

* Good

M208-A6 General Description

The M208-A6 contact image sensor (CIS) module is a contact type image sensing module that is composed of a red LED’s as a light source, a long Selfoc rod lens array, and 2496 photo-detector array. Input and output electronic contact is via a 10-pin connector. The cross sectioned view of the M208-A.

M208-A6 Datasheet (57.05 KB)

Preview of M208-A6 PDF

Datasheet Details

Part number:

M208-A6

Manufacturer:

CMOS Sensor

File Size:

57.05 KB

Description:

Contact image sensor module.

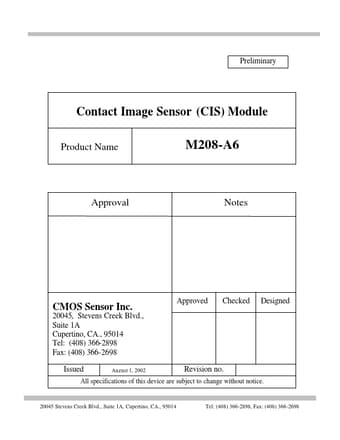

Preliminary Contact Image Sensor (CIS) Module Product Name M208-A6 Approval Notes CMOS Sensor Inc. 20045, Stevens Creek Blvd., Suite 1A Cupertin.
