M206-A3C Contact Image Sensor Module

The M206-A3C is a very high speed, linear Contact Image Sensor (CIS) module. The module built in three different LED (Blue, Green and Red) light source. In order to prevent the shading problem on the conventional CIS module, a dual light source structure is used. One light source is *45 deg.

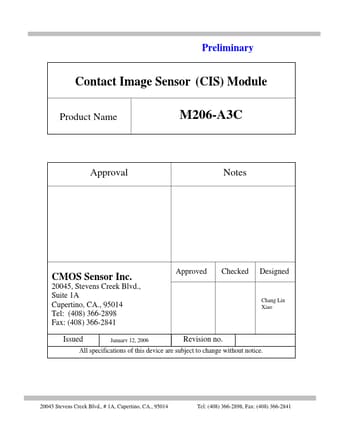

Preliminary Contact Image Sensor (CIS) Module Product Name M206-A3C Approval Notes CMOS Sensor Inc. 20045, Stevens Creek Blvd., Suite 1A Cupertino, CA., 95014 Tel: (408) 366-2898 Fax: (408) 366-2841 Approved Checked Designed Chang Lin Xiao Issued January 12, 2006 Revision no. All specifications of this device are subject to change without notice. 20045 Stevens Creek Blvd., # 1A, Cupertino, CA., 95014 Tel: (408) 366-2898, Fax: (408) 366-2841 Revision control sheet Revision No. Date.

M206-A3C Features

* Resolution selectable: 300 dpi / 600dpi resolution

* Pixel number: 7224 pixels

* Very high speed scanning rate: 0.3 ms / line / color

* Three video output

* Three different LED light source: Blue, Green and Red

* Dual light source structure: -45 deg

M206-A3C Datasheet (102.94 KB)

M206-A3C Datasheet Preview — Preview of M206-A3C PDF

Datasheet Details

Part number:

M206-A3C

Manufacturer:

CMOS Sensor

File Size:

102.94 KB

Description:

Contact image sensor module.
