M2060 - Clock Oscillator

M2060 Description

M2060 Series Product .
The MtronPTI M2060 Series is an ultra miniature 3.

M2060 Features

* www. datasheet4u. com 3.2 x 5 mm, 3.3 Volt, LVPECL, Clock Oscillator
* 3.3 Vdc LVPECL 3.2 x 5 mm ultra miniature ceramic package Low Jitter 1 ps max. , 12 kHz to 20 MHz Frequency stability to 25 ppm -40°C to +85°C operating t

M2060 Applications

* The M2060 Series is an excellent clock oscillator when the design dictates low supply voltage, low jitter, minimum PC board real estate and excellent phase noise performance. Applications for the M2060 include SONET / SDH / DWDM / ATM / DSRC, Ethernet, Fiber Channel, Digital Switching Networks and

📥 Download Datasheet

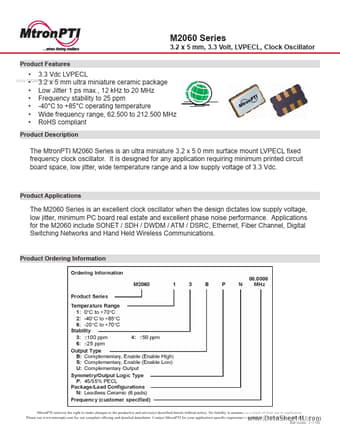

Preview of M2060 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
M2060
Manufacturer
MTRONPTI
File Size
660.11 KB
Datasheet
M2060_MTRONPTI.pdf
Description
Clock Oscillator
