M908-01 Datasheet, Generator, Integrated Circuit System

M908-01 Features

  • Generator
  • 156.25MHz output clock frequency (M908-01-156.2500)
  • Eight identical LVPECL output pairs
  • Jitter 0.7ps RMS (over 12kHz-20MHz)
  • Ideal for Gigabit Eth

PDF File Details

Part number:

M908-01

Manufacturer:

Integrated Circuit System

File Size:

311.75kb

Download:

📄 Datasheet

Description:

Vcso-based gbe clock generator. The M908-01 is a PLL (Phase Locked Loop) based clock generator that uses an internal VCSO (Voltage Controlled SAW Oscillator) to prod

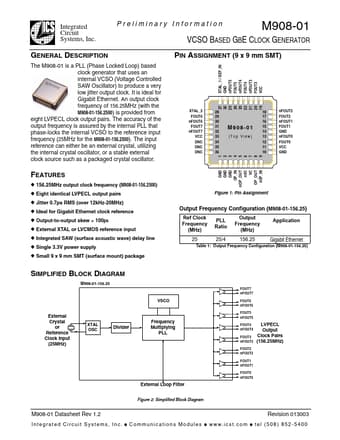

Datasheet Preview: M908-01 📥 Download PDF (311.75kb)
Page 2 of M908-01 Page 3 of M908-01

M908-01 Application

  • Applications M908-01 Datasheet Rev 1.2 Integrated Circuit Systems, Inc.
  • 3 of 6 Communications Modules
  • Revision 013003 w w w.
