VCSO BASED GBE CLOCK GENERATOR

M902-01 Features

* Output clock frequency from 125MHz to 190MHz (Consult factory for frequency availability)

* Two identical LVPECL output pairs

* Integrated SAW (surface acoustic wave) delay line

* Low jitter 0.5ps rms (over 12kHz-20MHz)

* Ideal for Gigabit Ethernet clock reference

* Output-

M902-01 General Description

The M902-01 is a PLL (Phase Locked Loop) based clock generator that uses an internal VCSO (Voltage Controlled SAW Oscillator) to produce a very low jitter output clock. It is ideal for Gigabit Ethernet. The output clock (frequency of 156.25 or 187.50MHz for example) is provided from two LVPECL clock.

M902-01 Datasheet (328.75 KB)

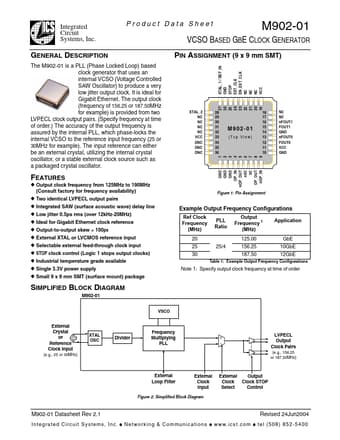

Preview of M902-01 PDF

Datasheet Details

Part number:

M902-01

Manufacturer:

Integrated Circuit Systems

File Size:

328.75 KB

Description:

Vcso based gbe clock generator.
Integrated Circuit Systems, Inc. Product Data Sheet M902-01 VCSO BASED GBE CLOCK GENERATOR PIN ASSIGNMENT (9 x 9 mm SMT) XTAL_1 / REF_IN GND STOP E.
