AV9110-01CS14 Datasheet - Integrated Circuit Systems

AV9110-01CS14 Serially Programmable Frequency Generator

The AV9110 generates user specified clock frequencies using an externally generated input reference, such as 14.318 MHz or 10.00 MHz crystal connected between pins 1 and 14. Alternately, a TTL input reference clock signal can be used. The output frequency is determined by a 24-bit digital word enter.

AV9110-01CS14 Features

* Complete user programmability of output frequency through serial input data port On-chip Phase-Locked Loop for clock generation Generates accurate frequencies up to 130 MHz Tristate CMOS outputs 5 volt power su

AV9110-01CS14_IntegratedCircuitSystems.pdf

Preview of AV9110-01CS14 PDF

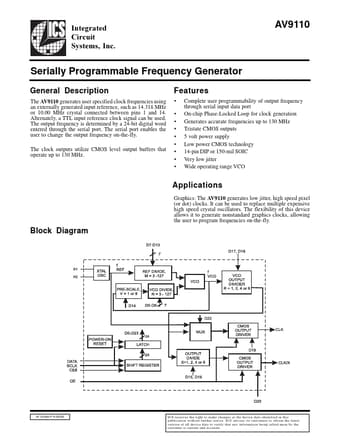

AV9110-01CS14 Datasheet Preview Page 2 AV9110-01CS14 Datasheet Preview Page 3

Datasheet Details

Part number:

AV9110-01CS14

Manufacturer:

Integrated Circuit Systems

File Size:

268.00 KB

Description:

Serially programmable frequency generator.
