AV9110 Datasheet - Integrated Circuit Systems

AV9110 Serially Programmable Frequency Generator

The AV9110 generates user specified clock frequencies using an externally generated input reference, such as 14.318 MHz or 10.00 MHz crystal connected between pins 1 and 14. Alternately, a TTL input reference clock signal can be used. The output frequency is determined by a 24-bit digital word enter.

AV9110 Features

* Complete user programmability of output frequency through serial input data port On-chip Phase-Locked Loop for clock generation Generates accurate frequencies up to 130 MHz Tristate CMOS outputs 5 volt power su

AV9110 Datasheet (268.00 KB)

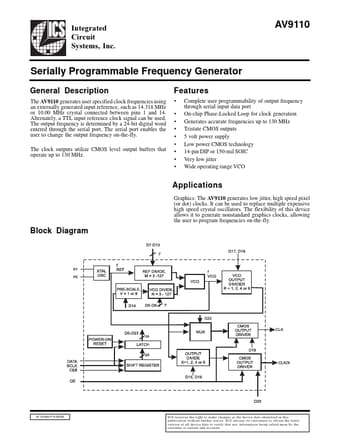

AV9110 Datasheet Preview — Preview of AV9110 PDF

Datasheet Details

Part number:

AV9110

Manufacturer:

Integrated Circuit Systems

File Size:

268.00 KB

Description:

Serially programmable frequency generator.
