AV9170-07CN08 Datasheet - Integrated Circuit Systems

AV9170-07CN08 Clock Multiplier

The AV9170-07 is a PLL (Phase-Locked Loop) based frequency multiplier designed for use on Media Vision sound boards. This clock output is 4X the input clock, it is restricted to the output divider and the VCO range. The output frequency range is 1 to 12.5MHz, with an input range of 0.64 to 0.768MHz .

AV9170-07CN08_IntegratedCircuitSystems.pdf

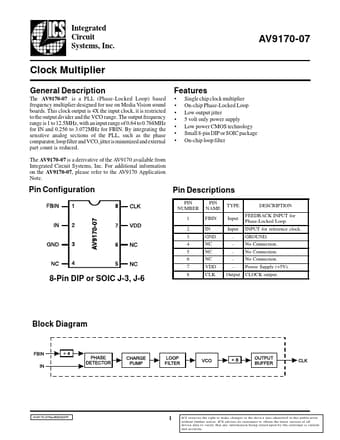

Preview of AV9170-07CN08 PDF
AV9170-07CN08 Datasheet Preview Page 2

Datasheet Details

Part number:

AV9170-07CN08

Manufacturer:

Integrated Circuit Systems

File Size:

95.40 KB

Description:

Clock multiplier.
