ICS502 - LOCO PLL Clock Multiplier

Product Overview

Integrated Circuit Systems

Datasheet Details

Part number	ICS502
Manufacturer	Integrated Circuit Systems
File Size	66.16 KB
Description	LOCO PLL Clock Multiplier
Datasheet	ICS502 Datasheet

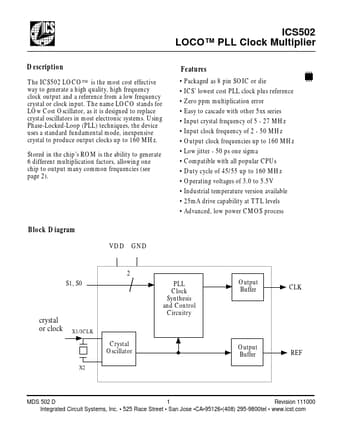

Additional preview pages of the ICS502 datasheet.

Product details

Description

The ICS502 LOCO™ is the most cost effective way to generate a high quality, high frequency clock output and a reference from a low frequency crystal or clock input.

Features

Packaged as 8 pin SOIC or die.
ICS’ lowest cost PLL clock plus reference.
Zero ppm multiplication error.
Easy to cascade with other 5xx series.
Input crystal frequency of 5 - 27 MHz.
Input clock frequency of 2 - 50 MHz.
Output clock frequencies up to 160 MHz.
Low jitter - 50 ps one sigma.
Compatible with all popular CPUs.
Duty cycle of 45/55 up to 160 MHz.
Operating voltages of 3.0 to 5.5V.
