ICS508 - PECL to CMOS Converter

Product Overview

Integrated Circuit Systems

📥 Download Datasheet

ICS508 PECL to CMOS Converter by Integrated Circuit Systems - Datasheet Preview — Datasheet preview – ICS508

Datasheet Details

Part number	ICS508
Manufacturer	Integrated Circuit Systems
File Size	49.16 KB
Description	PECL to CMOS Converter
Datasheet	ICS508 Datasheet
Additional preview pages of the ICS508 datasheet.

Product details

Description

The ICS508 is the most cost effective way to generate a high quality, high frequency CMOS clock output from a PECL clock input.

Features

Packaged as 8 pin SOIC or die.
Separate VDD supplies allow voltage translation.
Clock frequency of 0 - 250 MHz.
Duty cycle of 45/55.
Operating voltages of 2.375 to 5.5 V.
Tri-state output for board level testing.
24 mA drive capability.
Industrial temperature version available.

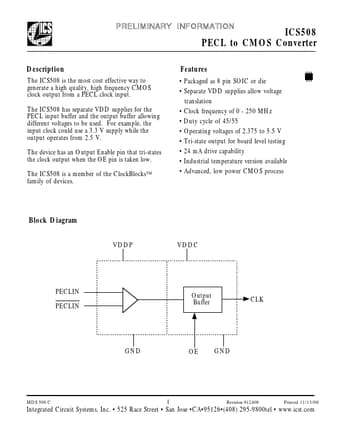

Advanced, low power CMOS process Block Diagram VDDP VDDC PECLIN PECLIN Output Buffer CLK GND OE GND 1 Revision 012400 Printed 11/13.
