ICS5310I-01 - ECL/LVPECL FANOUT BUFFER

Product Overview

Integrated Circuit Systems

Datasheet Details

Part number	ICS5310I-01
Manufacturer	Integrated Circuit Systems
File Size	216.12 KB
Description	ECL/LVPECL FANOUT BUFFER
Datasheet	ICS5310I-01 Datasheet

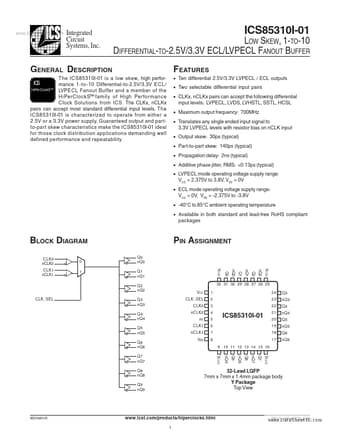

Additional preview pages of the ICS5310I-01 datasheet.

Product details

Description

The ICS85310I-01 is a low skew, high performance 1-to-10 Differential-to-2.5V/3.3V ECL/ HiPerClockS™ LVPECL Fanout Buffer and a member of the HiPerClockS™ family of High Perfor mance Clock Solutions from ICS.

Features

Ten differential 2.5V/3.3V LVPECL / ECL outputs.
Two selectable differential input pairs.
CLKx, nCLKx pairs can accept the following differential input levels: LVPECL, LVDS, LVHSTL, SSTL, HCSL.
Maximum output frequency: 700MHz.
Translates any single ended input signal to 3.3V LVPECL levels with resistor bias on nCLK input.
Output skew: 30ps (typical).
Part-to-part skew: 140ps (typical).
Propagation delay: 2ns (typical).
