ICS8308I, Low Skew 1-To-8 Differential/LVCOMS-TO-LVCMOS Fanout Buffer

Integrated Circuit Systems, Inc.ICS8308I LOW SKEW, 1-TO-8 DIFFERENTIAL/LVCMOS-TO-LVCMOS FANOUT BUFFER .
The ICS8308I is a low-skew, 1-to-8 Fanout Buffer and a member of the HiPerClockS™ family of High Performance Clock Solutions from ICS.

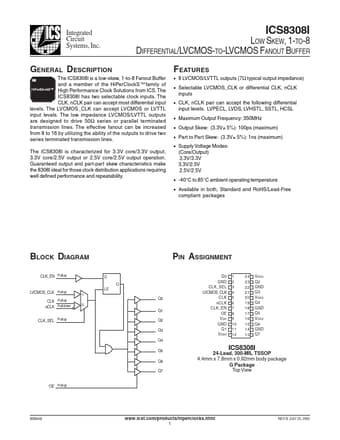

datasheet Preview Page 1 from Datasheet4u.com

ICS8308I_IntegratedCircuitSystems.pdf

ICS8308I Datasheet Preview — Preview of ICS8308I PDF

Datasheet Details

Part number:

ICS8308I

Manufacturer:

Integrated Circuit Systems

File Size:

226.94 KB

Description:

Low Skew 1-To-8 Differential/LVCOMS-TO-LVCMOS Fanout Buffer

Features

* 8 LVCMOS/LVTTL outputs (7Ω typical output impedance)
* Selectable LVCMOS_CLK or differential CLK, nCLK inputs
* CLK, nCLK pair can accept the following differential input levels: LVPECL, LVDS, LVHSTL, SSTL, HCSL
* Maximum Output Frequency: 350MHz
* Output Sk

Applications

* requiring well defined performance and repeatability. BLOCK DIAGRAM CLK_EN Pullup D Q LE 1 PIN ASSIGNMENT Q0 GND CLK_SEL LVCMOS_CLK CLK nCLK CLK_EN OE VDD GND Q1 VDDO 1 2 3 4 5 6 7 8 9 10 11 12 24 23 22 21 20 19 18 17 16 15 14 13 VDDO Q2 GND Q3 VDDO Q4 GND Q5 VDDO Q6 GND Q7 LVCMOS_CLK Pullup CLK
