Datasheet Details
- Part number
- ICS83026I
- Manufacturer
- Integrated Circuit Systems
- File Size
- 154.14 KB
- Datasheet
- ICS83026I_IntegratedCircuitSystems.pdf
- Description
- 1-TO-2 DIFFERENTIAL-TO-LVCMOS/LVTTL FANOUT BUFFER

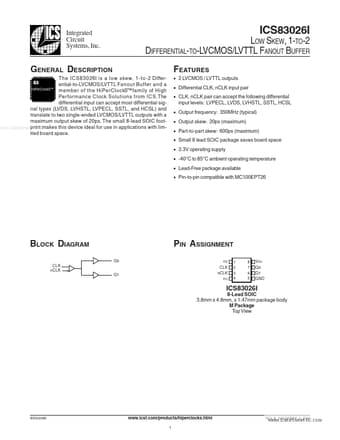

ICS83026I Description
Integrated Circuit Systems, Inc.ICS83026I LOW SKEW, 1-TO-2 DIFFERENTIAL-TO-LVCMOS/LVTTL FANOUT BUFFER .
The ICS83026I is a low skew, 1-to-2 Differential-to-LVCMOS/LVTTL Fanout Buffer and a HiPerClockS™ member of the HiPerClockS™ family of High Perfor man.
ICS83026I Features
* 2 LVCMOS / LVTTL outputs
* Differential CLK, nCLK input pair
* CLK, nCLK pair can accept the following differential input levels: LVPECL, LVDS, LVHSTL, SSTL, HCSL
* Output frequency: 350MHz (typical)
* Output skew: 20ps (maximum)
* Part-to-part skew:
ICS83026I Applications
* with limwww. DataSheet4U. com ited board space. ICS
BLOCK DIAGRAM
Q0 CLK nCLK Q1
PIN ASSIGNMENT
nc CLK nCLK nc 1 2 3 4 8 7 6 5 VDD Q0 Q1 GND
ICS83026I
8-Lead SOIC 3.8mm x 4.8mm, x 1.47mm package body M Package Top View
83026AMI
www. icst. com/products/hiperclocks. html
1
REV. B NOVEMBER 9, 2004
