ICS8302I-01, 1-TO-2 LVCMOS / LVTTL FANOUT BUFFER W/ COMPLEMENTARY OUTPUT

Integrated Circuit Systems, Inc.ICS8302I-01 LOW SKEW, 1-TO-2 LVCMOS / LVTTL FANOUT BUFFER W/ COMPLEMENTARY OUTPUT .
T h e I C S 8 3 0 2I-01 i s a l ow s kew, 1 - t o - 2 LVCMOS/LVTTL Fanout Buffer w/ComplemenHiPerClockS™ tary Output a n d a m e m b e r o f t h e HiP.

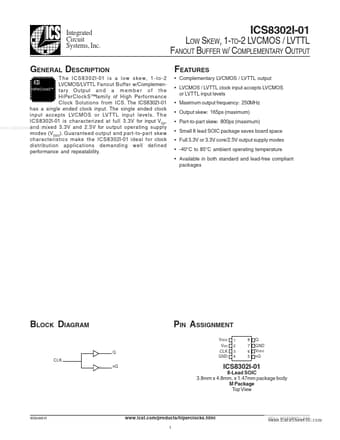

datasheet Preview Page 1 from Datasheet4u.com

ICS8302I-01_IntegratedCircuitSystems.pdf

ICS8302I-01 Datasheet Preview — Preview of ICS8302I-01 PDF

Datasheet Details

Part number:

ICS8302I-01

Manufacturer:

Integrated Circuit Systems

File Size:

157.30 KB

Description:

1-TO-2 LVCMOS / LVTTL FANOUT BUFFER W/ COMPLEMENTARY OUTPUT

Features

* Complementary LVCMOS / LVTTL output
* LVCMOS / LVTTL clock input accepts LVCMOS or LVTTL input levels
* Maximum output frequency: 250MHz
* Output skew: 165ps (maximum)
* Part-to-part skew: 800ps (maximum)
* Small 8 lead SOIC package saves board space

Applications

* demanding well defined performance and repeatability. IC S BLOCK DIAGRAM Q CLK nQ PIN ASSIGNMENT VDDO VDD CLK GND 1 2 3 4 8 7 6 5 Q GND VDDO nQ ICS8302I-01 8-Lead SOIC 3.8mm x 4.8mm, x 1.47mm package body M Package Top View 8302AMI-01 www. icst. com/products/hiperclocks. html 1 REV. A NOVEMBER 2
