ICS8305I-02 - LVCMOS-to-LVCMOS Fanout Buffer

Product Overview

Renesas

Part number	ICS8305I-02
Manufacturer	Renesas
File Size	1.31 MB
Description	LVCMOS-to-LVCMOS Fanout Buffer
Datasheet	ICS8305I-02 Datasheet

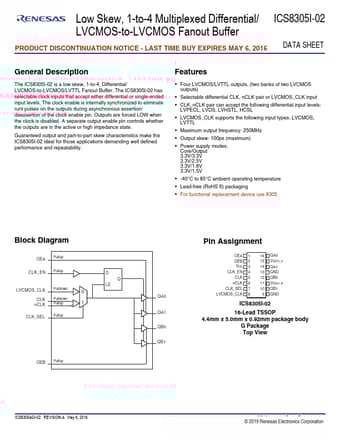

Additional preview pages of the ICS8305I-02 datasheet.

The ICS8305I-02 is a low skew, 1-to-4, Differential/ LVCMOS-to-LVCMOS/LVTTL Fanout Buffer.

Four LVCMOS/LVTTL outputs, (two banks of two LVCMOS outputs).
Selectable differential CLK, nCLK pair or LVCMOS_CLK input.
CLK, nCLK pair can accept the following differential input levels: LVPECL, LVDS, LVHSTL, HCSL.
LVCMOS_CLK supports the following input types: LVCMOS, LVTTL.
Maximum output frequency: 250MHz.
Output skew: 100ps (maximum).
Power supply modes: Core/Output 3.3V/3.3V 3.3V/2.5V 3.3V/1.8V 3.3V/1.5V.
-40°C to 85.
