ICS83052I-01 - SINGLE-ENDED MULTIPLEXER

ICS83052I-01 Description

PRELIMINARY Integrated Circuit Systems, Inc.ICS83052I-01 2-BIT, 2:1, SINGLE-ENDED MULTIPLEXER GENERAL .
The ICS83052I-01 is a 2-bit, 2:1, Single-ended Multiplexer and a member of the HiPerClockS™famHiPerClockS™ ily of High Performance Clock Solutions fro.

ICS83052I-01 Features

* 2-bit, 2:1 single-ended multiplexer
* Nominal output impedance: 15Ω (VDDO = 3.3V)
* Maximum output frequency: 250MHz
* Propagation delay: 2.5ns (typical)
* Input skew: 45ps (typical)
* Part-to-part skew: TBD
* Additive phase jitter, RMS (12KH

ICS83052I-01 Applications

* An output enable pin places the output in a high impedance state which may be useful for testing or www. DataSheet4U. com debug. Possible applications include systems with up to two transceivers which need to be independently set for different rates. For example, a board may have two transceivers, ea

📥 Download Datasheet

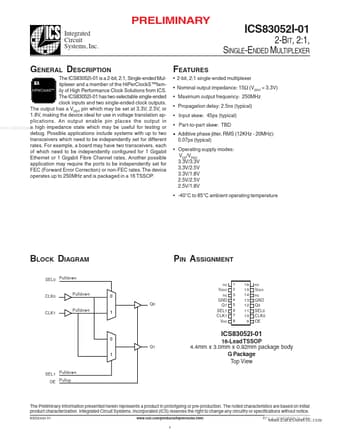

Preview of ICS83052I-01 PDF
datasheet Preview Page 2 datasheet Preview Page 3
