ICS83023I, 1-TO-1 DIFFERENTIAL-TOLVCMOS TRANSLATOR/BUFFER

DATA SHEET DUAL, 1-TO-1Integrated DIFFERENTIAL-TOCircuit Systems, Inc.LVCMOS TRANSLATOR/BUFFER GENERAL .
DUAL, 1-TO-1 DIFFERENTIAL-TO-LVCMOS TRANSLATOR /BUFFER Features. Two LVCMOS / LVTTL outputs. Two differential CLKx, nCLKx input pai.

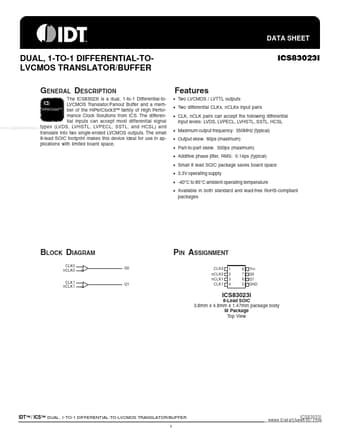

datasheet Preview Page 1 from Datasheet4u.com

ICS83023I_IntegratedDeviceTechnology.pdf

ICS83023I Datasheet Preview — Preview of ICS83023I PDF

Datasheet Details

Part number:

ICS83023I

Manufacturer:

Integrated Device Technology

File Size:

368.61 KB

Description:

1-TO-1 DIFFERENTIAL-TOLVCMOS TRANSLATOR/BUFFER

Features

* Two LVCMOS / LVTTL outputs
* Two differential CLKx, nCLKx input pairs
* CLK, nCLK pairs can accept the following differential input levels: LVDS, LVPECL, LVHSTL, SSTL, HCSL
* Maximum output frequency: 350MHz (typical)
* Output skew: 60ps (maximum)

Applications

* with limited board space. BLOCK DIAGRAM CLK0 nCLK0 CLK1 nCLK1 Q0 PIN ASSIGNMENT CLK0 nCLK0 nCLK1 CLK1 1 2 3 4 8 7 6 5 VDD Q0 Q1 GND Q1 ICS83023I 8-Lead SOIC 3.8mm x 4.8mm x 1.47mm package body M Package Top View 83023AMI www. icst. com/products/hiperclocks. html 1 REV. B JANUARY 18, 2006 IDT™ /
