ICS83054I - SINGLE-ENDED MULTIPLEXER

ICS83054I Description

Integrated Circuit Systems, Inc.ICS83054I 4:1, SINGLE-ENDED MULTIPLEXER .
The ICS83054I is a low skew, 4:1, Singleended Multiplexer and a member of the HiPerClockS™ HiPerClockS ™ family of High Performance Clock Solutions fr.

ICS83054I Features

* 4:1 single-ended multiplexer
* Q nominal output impedance: 7Ω (VDDO =3 .3V)
* Maximum output frequency: 250MHz
* Propagation delay: 3ns (maximum), VDD = VDDO = 3.3V
* Input skew: 225ps (maximum), VDD = VDDO = 3.3V
* Part-to-part skew: 475ps (maximum)

ICS83054I Applications

* An output enable pin places the output in a high www. DataSheet4U. com impedance state which may be useful for testing or debug. The device operates up to 250MHz and is packaged in a 16 TSSOP. IC S BLOCK DIAGRAM CLK0 CLK1 Q CLK2 CLK3 PIN ASSIGNMENT Q nc OE CLK3 GND nc SEL1 CLK2 1 2 3 4 5 6 7 8 16

📥 Download Datasheet

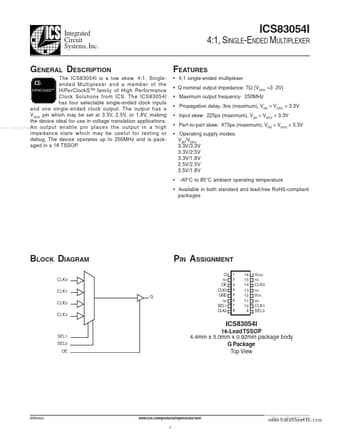

Preview of ICS83054I PDF
