ICS840022I-02 - Crystal-to-LVCMOS/LVTTL Clock Generator

Product Overview

Renesas

Part number	ICS840022I-02
Manufacturer	Renesas
File Size	534.19 KB
Description	Crystal-to-LVCMOS/LVTTL Clock Generator
Datasheet	ICS840022I-02 Datasheet

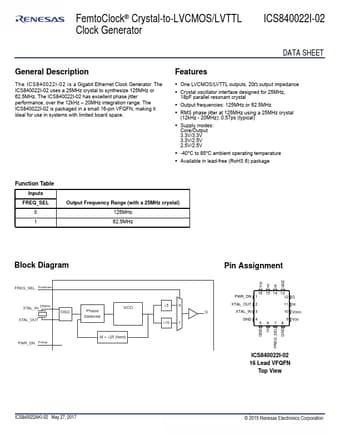

Additional preview pages of the ICS840022I-02 datasheet.

The ICS840022I-02 is a Gigabit Ethernet Clock Generator. 20MHz integration range.

One LVCMOS/LVTTL outputs, 20 output impedance.
Crystal oscillator interface designed for 25MHz, 18pF parallel resonant crystal.
Output frequencies: 125MHz or 62.5MHz.
RMS phase jitter at 125MHz using a 25MHz crystal (12kHz - 20MHz): 0.57ps (typical).
Supply modes: Core/Output 3.3V/3.3V 3.3V/2.5V 2.5V/2.5V.
-40°C to 85°C ambient operating temperature.
Available in lead-free (RoHS 6) package Function Table Inputs FREQ_SEL 0 1 Outpu.
