ICS840N202I - Universal Frequency Translator

Product Overview

Renesas

Datasheet Details

Part number	ICS840N202I
Manufacturer	Renesas
File Size	651.74 KB
Description	Universal Frequency Translator
Datasheet	ICS840N202I Datasheet

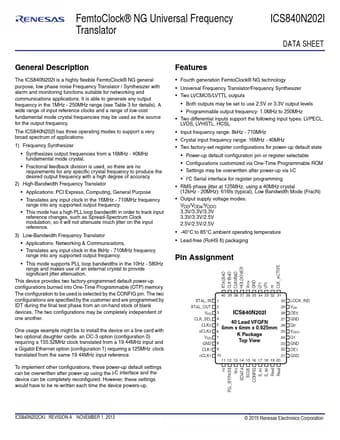

Additional preview pages of the ICS840N202I datasheet.

Product details

Description

The ICS840N202I is a highly flexible FemtoClock® NG general purpose, low phase noise Frequency Translator / Synthesizer with alarm and monitoring functions suitable for networking and communications applications.

Features

Fourth generation FemtoClock® NG technology.
Universal Frequency Translator/Frequency Synthesizer.
Two LVCMOS/LVTTL outputs.
Both outputs may be set to use 2.5V or 3.3V output levels.
Programmable output frequency: 1.0MHz to 250MHz.
Two differential inputs support the following input types: LVPECL, LVDS, LVHSTL, HCSL.
Input frequency range: 8kHz - 710MHz.
Crystal input frequency range: 16MHz - 40MHz.
Two factory-se.
