ICS840001-31 - CRYSTAL-TO LVCMOS/LVTTL FREQUENCY SYNTHESIZER

Product Overview

Integrated Circuit Systems

Datasheet Details

Part number	ICS840001-31
Manufacturer	Integrated Circuit Systems
File Size	197.79 KB
Description	CRYSTAL-TO LVCMOS/LVTTL FREQUENCY SYNTHESIZER
Datasheet	ICS840001-31 Datasheet

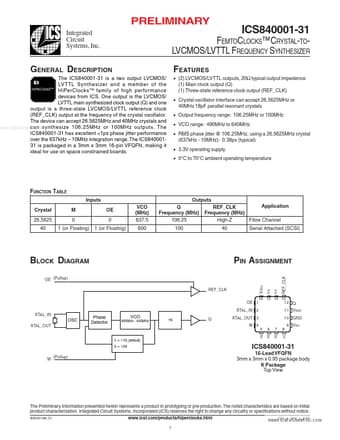

Additional preview pages of the ICS840001-31 datasheet.

Product details

Description

The ICS840001-31 is a two output LVCMOS/ LVTTL Synthesizer and a member of the HiPerClockS™ HiPerClocks TM family of high perfor mance devices from ICS.

Features

(2) LVCMOS/LVTTL outputs, 20Ω typical output impedence (1) Main clock output (Q) (1) Three-state reference clock output (REF_CLK).
Crystal oscillator interface can accept 26.5625MHz or 40MHz 18pF parallel resonant crystals.
Output frequency range: 106.25MHz or 100MHz.
VCO range: 490MHz to 640MHz.
RMS phase jitter @ 106.25MHz, using a 26.5625MHz crystal (637kHz - 10MHz): 0.38ps (typical).
3.3V operating supply.
0°C to 70°C ambient op.
