ICS840002-32 - CRYSTAL-TO LVCMOS/LVTTL FREQUENCY SYNTHESIZER

Product Overview

Integrated Circuit Systems

Datasheet Details

Part number	ICS840002-32
Manufacturer	Integrated Circuit Systems
File Size	164.67 KB
Description	CRYSTAL-TO LVCMOS/LVTTL FREQUENCY SYNTHESIZER
Datasheet	ICS840002-32 Datasheet

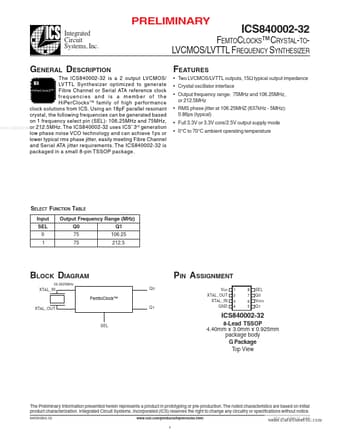

Additional preview pages of the ICS840002-32 datasheet.

Product details

Description

The ICS840002-32 is a 2 output LVCMOS/ LVTTL Synthesizer optimized to generate HiPerClockS™ Fibre Channel or Serial ATA reference clock frequencies and is a member of the HiPerClocks TM family of high perfor mance clock solutions from ICS.

Features

Two LVCMOS/LVTTL outputs, 15Ω typical output impedance.
Crystal oscillator interface.
Output frequency range: 75MHz and 106.25MHz, or 212.5MHz.
RMS phase jitter at 106.25MHZ (637kHz - 5MHz): 0.86ps (typical).
Full 3.3V or 3.3V core/2.5V output supply mode.
0°C to 70°C ambient operating temperature.
