ICS840002I - CRYSTAL-TO LVCMOS/LVTTL FREQUENCY SYNTHESIZER

Product Overview

Integrated Circuit Systems

Datasheet Details

Part number	ICS840002I
Manufacturer	Integrated Circuit Systems
File Size	242.77 KB
Description	CRYSTAL-TO LVCMOS/LVTTL FREQUENCY SYNTHESIZER
Datasheet	ICS840002I Datasheet
Additional preview pages of the ICS840002I datasheet.

Product details

Description

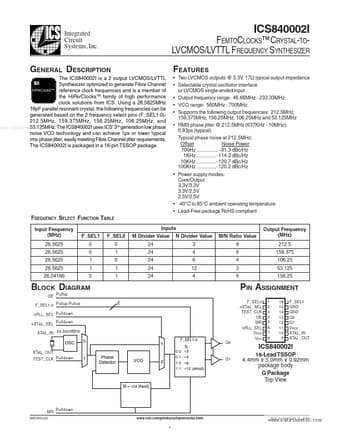

The ICS840002I is a 2 output LVCMOS/LVTTL Synthesizer optimized to generate Fibre Channel HiPerClockS™ reference clock frequencies and is a member of the HiPerClocksTM family of high performance clock solutions from ICS.

Features

Two LVCMOS outputs @ 3.3V, 17Ω typical output impedance.
Selectable crystal oscillator interface or LVCMOS single-ended input.
Output frequency range: 46.66MHz - 233.33MHz.
VCO range: 560MHz - 700MHz.
Supports the following output frequencies: 212.5MHz, 159.375MHz, 156.25MHz, 106.25MHz and 53.125MHz.
RMS phase jitter @ 212.5MHz (637KHz - 10MHz): 0.83ps (typical) Typical phase noise at 212.5MHz: Offset Noise Power 100Hz -91.3 dBc/Hz 1KHz -1.
