ICS840002-01 - CRYSTAL-TO LVCMOS/LVTTL FREQUENCY SYNTHESIZER

Product Overview

Integrated Circuit Systems

Datasheet Details

Part number	ICS840002-01
Manufacturer	Integrated Circuit Systems
File Size	235.97 KB
Description	CRYSTAL-TO LVCMOS/LVTTL FREQUENCY SYNTHESIZER
Datasheet	ICS840002-01 Datasheet

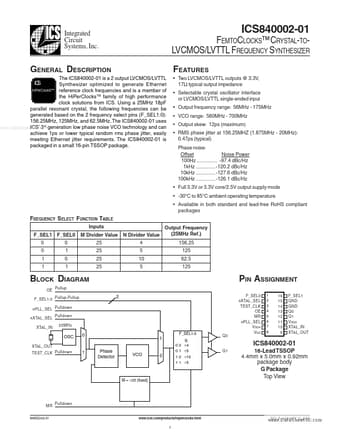

Additional preview pages of the ICS840002-01 datasheet.

Product details

Description

The ICS840002-01 is a 2 output LVCMOS/LVTTL Synthesizer optimized to generate Ethernet HiPerClockS™ reference clock frequencies and is a member of the HiPerClocksTM family of high performance clock solutions from ICS.

Features

Two LVCMOS/LVTTL outputs @ 3.3V, 17Ω typical output impedance.
Selectable crystal oscillator interface or LVCMOS/LVTTL single-ended input.
Output frequency range: 56MHz - 175MHz.
VCO range: 560MHz - 700MHz.
Output skew: 12ps (maximum).
RMS phase jitter at 156.25MHZ (1.875MHz - 20MHz): 0.47ps (typical) Phase noise: Offset Noise Power 100Hz -97.4 dBc/Hz 1kHz -120.2 dBc/Hz 10kHz -127.6 dBc/Hz 100kHz -126.1 dBc/Hz.
Full 3.3V or 3.3V.
