ICS840001-32 - CRYSTAL-TO LVCMOS/LVTTL FREQUENCY SYNTHESIZER

The ICS840001-32 is a two output LVCMOS/ LVTTL Synthesizer and is a member of the HiPerClockS™ HiPerClocks TM family of high perfor mance devices from ICS.

The device uses a 40MHz crystal to provide a 40MHz reference clock output and to synthesize a 100MHz or 106.25MHz output.

The ICS840001-32 has e

ICS840001-32 Features

* One LVCMOS/LVTTL output, 15Ω typical output impedence and one reference clock output

* 40MHz, 10pF parallel resonant crystal

* Output frequencies: 100MHz or 106.25MHz

* RMS phase jitter @ 106.25MHz, using a 40MHz crystal (637kHz - 5MHz): 0.78ps (typical)

* 3

ICS840001-32_IntegratedCircuitSystems.pdf

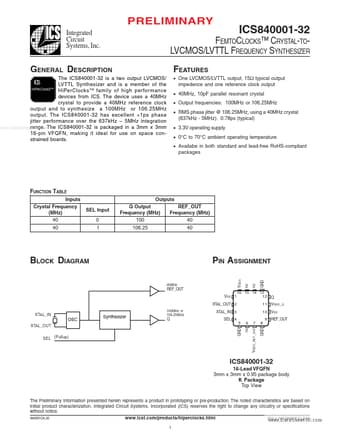

Preview of ICS840001-32 PDF
