ICS840-75 - LVCMOS/LVTTL OSCILLATOR REPLACEMENT

ICS840-75 Description

PRELIMINARY Integrated Circuit Systems, Inc.ICS840-75 75MHZ, LVCMOS/LVTTL OSCILLATOR REPLACEMENT GENERAL .
The ICS840-75 is a SAS/SATA Oscillator Replacement and a member of the HiPerClockS™ HiPerClocks TM family of high perfor mance devices from ICS.

ICS840-75 Features

* One LVCMOS/LVTTL output, 15Ω output impedence
* Crystal oscillator interface designed for 25MHz, 18pF parallel resonant crystal
* Output frequency: 75MHz
* Random jitter: 3ps (typical)
* Deterministic jitter: 0.14ps (typical)
* 3.3V operating supply

ICS840-75 Applications

* Any other applications such as those requiring extended temperature range, high reliability, or other extraordinary environmental requirements are not recommended without additional processing by ICS. ICS reserves the right to change any circuitry or specifications without notice. ICS does not auth

📥 Download Datasheet

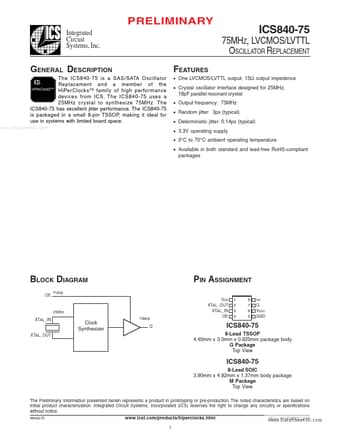

Preview of ICS840-75 PDF
