ICS831721I Datasheet - Renesas

ICS831721I Differential Clock/Data Multiplexer

The ICS831721I is a high-performance, differential HCSL clock/data multiplexer and fanout buffer. The device is designed for the multiplexing of high-frequency clock and data signals. The device has two differential, selectable clock/data inputs. The selected input signal is output at one differenti.

ICS831721I Features

* 2:1 differential clock/data multiplexer with fanout

* Two selectable, differential inputs

* Each differential input pair can accept the following levels: HCSL, LVHSTL, LVDS and LVPECL

* One differential HCSL output

* Maximum input/output clock frequency: 700

ICS831721I-Renesas.pdf

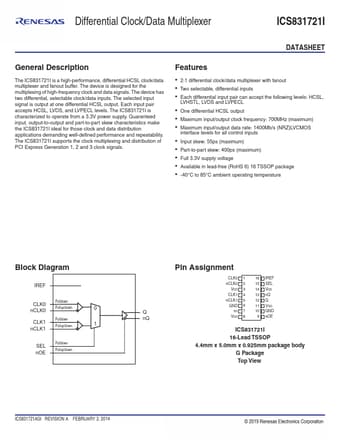

Preview of ICS831721I PDF
ICS831721I Datasheet Preview Page 2 ICS831721I Datasheet Preview Page 3

Datasheet Details

Part number:

ICS831721I

Manufacturer:

Renesas ↗

File Size:

0.97 MB

Description:

Differential clock/data multiplexer.
