ICS831752I Datasheet - Integrated Device Technology

ICS831752I Clock Switch

The ICS831752I is a high-performance, differential HCSL clock switch. The device is designed for the routing of PCIe clock signals in ATCA/AMC system and is optimized for PCIe Gen 1, Gen 2 and Gen 3. The device has one differential, bi-directional I/O (FCLK) for connection to ATCA clock sources and .

ICS831752I Features

* Clock switch for PCIe and ATCA/AMC applications

* Supports local and common ATCA/AMC clock modes

* Bi-directional clock I/O FCLK: - When operating as an output, FCLK is a source-terminated HCSL signal. - When operating as an input, FCLK accepts HCSL, LVDS and LVPECL levels.

ICS831752I-IntegratedDeviceTechnology.pdf

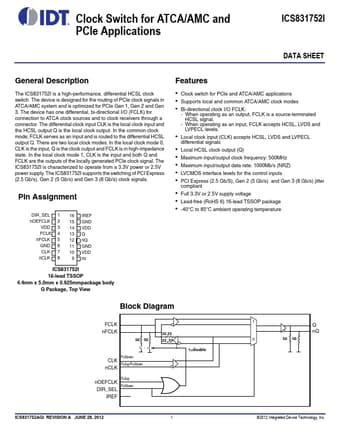

Preview of ICS831752I PDF
ICS831752I Datasheet Preview Page 2 ICS831752I Datasheet Preview Page 3

Datasheet Details

Part number:

ICS831752I

Manufacturer:

Integrated Device Technology

File Size:

849.41 KB

Description:

Clock switch.
