ICS83115BRT Datasheet, buffer equivalent, Integrated Circuit Systems

ICS83115BRT Features

  • Buffer
  • 16 LVCMOS/LVTTL outputs
  • 1 LVCMOS/LVTTL clock input
  • Maximum output frequency: 200MHz
  • All inputs are 5V tolerant
  • Output skew: 250ps (maxi

PDF File Details

Part number:

ICS83115BRT

Manufacturer:

Integrated Circuit Systems

File Size:

180.44kb

Download:

📄 Datasheet

Description:

Low skew/ 1-to-16 lvcmos / lvttl fanout buffer. The ICS83115 is a low skew, 1-to-16 LVCMOS/ LVTTL Fanout Buffer and a member of the HiPerClockS™ HiPerClockS™ family of High Performa

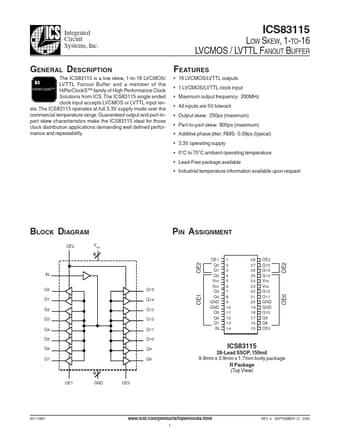

Datasheet Preview: ICS83115BRT 📥 Download PDF (180.44kb)
Page 2 of ICS83115BRT Page 3 of ICS83115BRT

ICS83115BRT Application

  • Applications demanding well defined performance and repeatability. ICS BLOCK DIAGRAM OE2 VDD PIN ASSIGNMENT 4 OE1 Q0 Q1 Q2 VDD VDD Q3 Q4 GND GND
