ICS83115BRLFT - LOW SKEW/ 1-TO-16 LVCMOS / LVTTL FANOUT BUFFER

Integrated Circuit Systems

ICS83115BRLFT Description

Integrated Circuit Systems, Inc.ICS83115 LOW SKEW, 1-TO-16 LVCMOS / LVTTL FANOUT BUFFER .
The ICS83115 is a low skew, 1-to-16 LVCMOS/ LVTTL Fanout Buffer and a member of the HiPerClockS™ HiPerClockS™ family of High Performance Clock Solutio.

ICS83115BRLFT Features

* 16 LVCMOS/LVTTL outputs
* 1 LVCMOS/LVTTL clock input
* Maximum output frequency: 200MHz
* All inputs are 5V tolerant
* Output skew: 250ps (maximum)
* Part-to-part skew: 800ps (maximum)
* Additive phase jitter, RMS: 0.09ps (typical)

ICS83115BRLFT Applications

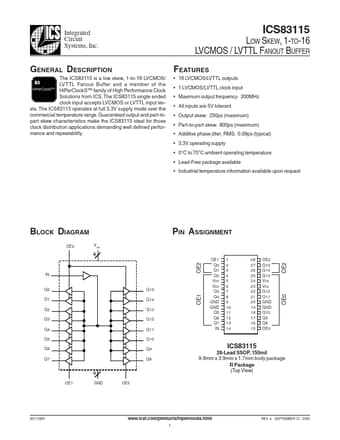

* demanding well defined performance and repeatability. ICS BLOCK DIAGRAM OE2 VDD PIN ASSIGNMENT 4 OE1 Q0 Q1 Q2 VDD VDD Q3 Q4 GND GND Q5 Q6 Q7 IN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 28 27 26 25 24 23 22 21 20 19 18 17 16 15 OE2 Q15 Q14 Q13 VDD VDD Q12 Q11 GND GND Q10 Q9 Q8 OE0 IN Q0 Q1 Q2 Q3 Q4 Q5 Q

📥 Download Datasheet

ICS83115BRLFT Datasheet Preview — Preview of ICS83115BRLFT PDF

Datasheet Details

Part number: ICS83115BRLFT
Manufacturer: Integrated Circuit Systems
File Size: 180.44 KB
Datasheet: ICS83115BRLFT_IntegratedCircuitSystems.pdf
Description: LOW SKEW/ 1-TO-16 LVCMOS / LVTTL FANOUT BUFFER
