ICS83940DI - LVCMOS/LVTTL Fanout Buffer

ICS83940DI Description

Low Skew, 1 to 18 LVPECL to LVCMOS/LVTTL Fanout Buffer PRODUCT DISCONTINUATION NOTICE - LAST TIME BUY EXPIRES MAY 6, 2017 (83940DKILF) ICS83940DI Dat.
Features The ICS83940DI is a low skew, 1 to 18 LVPECL to LVCMOS/LVTTL fanout buffer.

ICS83940DI Features

* The ICS83940DI is a low skew, 1 to 18 LVPECL to LVCMOS/LVTTL fanout buffer. The ICS83940DI has two selectable clock inputs. The PCLK, nPCLK pair can accept LVPECL, CML, or SSTL input levels. The LVCMOS_CLK can accept LVCMOS or LVTTL input levels. The low impedance LVCMOS/LVTTL outputs are designed

ICS83940DI Applications

* demanding well defined performance and repeatability. Block Diagram CLK_SEL Pulldown PCLK Pulldown nPCLK Pullup/Pulldown 0 18 Q0:Q17
* Eighteen LVCMOS/LVTTL outputs
* Selectable LVCMOS_CLK or LVPECL clock inputs
* PCLK, nPCLK pair can accept the following differential in

📥 Download Datasheet

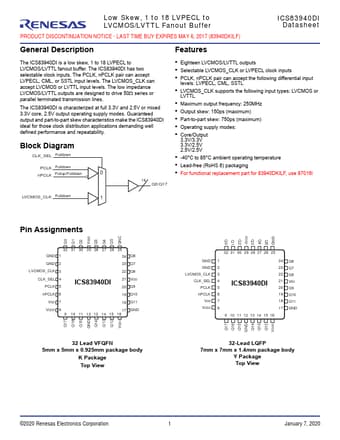

Preview of ICS83940DI PDF
