ICS83940 Datasheet, Buffer, Integrated Circuit Systems

ICS83940 Features

• Buffer
• 18 LVCMOS outputs, 23Ω typical output impedance
• Output frequency up to 200MHz
• 150ps output skew
• Part to part skew: 850ps
• Selectable LVC

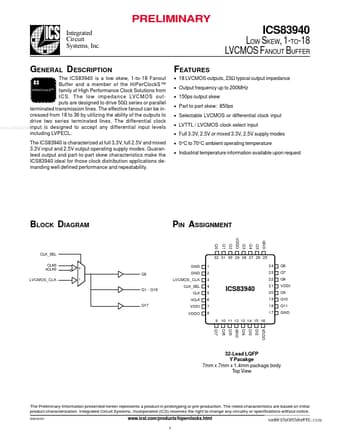

PDF File Details

Part number:

ICS83940

Manufacturer:

Integrated Circuit Systems

File Size:

116.88kb

Download:

📄 Datasheet

Description:

1-to-18 lvcmos fanout buffer. The ICS83940 is a low skew, 1-to-18 Fanout Buffer and a member of the HiPerClockS™ HiPerClockS™ family of High Performance Clock Solu

ICS83940 Application

• Applications demanding well defined performance and repeatability. BLOCK DIAGRAM PIN ASSIGNMENT VDDO GND Q0 Q1 Q2 Q3 Q4 Q5 CLK_SEL CLK0 nCLK0 LVC
