ICS83940-02, 1-TO-18 LVCMOS FANOUT BUFFER

PRELIMINARY Integrated Circuit Systems, Inc.ICS83940-02 LOW SKEW, 1-TO-18 LVCMOS FANOUT BUFFER .
The ICS83940-02 is a low skew, 1-to-18 Fanout Buffer and a member of the HiPerClockS™ HiPerClockS™ family of High Performance Clock Solutions from ICS.

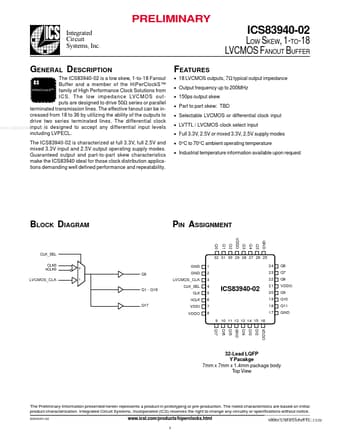

datasheet Preview Page 1 from Datasheet4u.com

ICS83940-02_IntegratedCircuitSystems.pdf

ICS83940-02 Datasheet Preview — Preview of ICS83940-02 PDF

Datasheet Details

Part number:

ICS83940-02

Manufacturer:

Integrated Circuit Systems

File Size:

120.48 KB

Description:

1-TO-18 LVCMOS FANOUT BUFFER

Features

* 18 LVCMOS outputs, 7Ω typical output impedance
* Output frequency up to 200MHz
* 150ps output skew
* Part to part skew: TBD
* Selectable LVCMOS or differential clock input
* LVTTL / LVCMOS clock select input
* Full 3.3V, 2.5V or mixed 3.3V, 2

Applications

* demanding well defined performance and repeatability. BLOCK DIAGRAM PIN ASSIGNMENT VDDO GND Q0 Q1 Q2 Q3 Q4 Q5 CLK_SEL CLK0 nCLK0 LVCMOS_CLK GND Q0 1 32 31 30 29 28 27 26 25 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Q17 Q16 Q15 GND Q14 Q13 Q12 VDDO 24 23 22 Q6 Q7 Q8 VDDO Q9 Q10 Q11 GND GND LVC
