ICS83947I

1-TO-9 LVCMOS FANOUT BUFFER

ICS83947I Features

* 9 LVCMOS/LVTTL outputs

* Selectable CLK0 and CLK1 can accept the following input levels: LVCMOS and LVTTL

* Maximum output frequency: 110MHz

* Output skew: 500ps (maximum)

* Part-to-part skew: 2ns (maximum)

* 3.3V operating supply

* -40°C to

ICS83947I General Description

The ICS83947I is a low skew, 1-to-9 LVCMOS Fanout Buffer and a member of the HiPerClockS™ HiPerClockS™ family of High Performance Clock Solutions from ICS. The low impedance LVCMOS/LVTTL outputs are designed to drive 50Ω series or parallel terminated transmission lines. The effective fanout can be i.

ICS83947I Datasheet (163.86 KB)

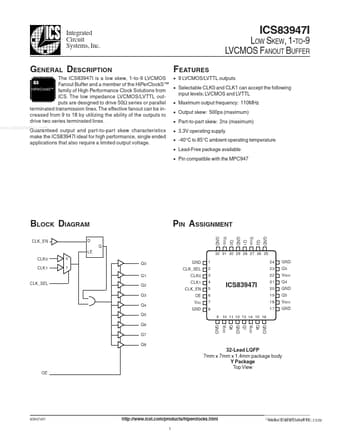

Preview of ICS83947I PDF

Datasheet Details

Part number:

ICS83947I

Manufacturer:

Integrated Circuit Systems

File Size:

163.86 KB

Description:

1-to-9 lvcmos fanout buffer.
