ICS83947I-147 - 1-TO-9 LVCMOS FANOUT BUFFER

ICS83947I-147 Description

Integrated Circuit Systems, Inc.ICS83947I-147 LOW SKEW, 1-TO-9 LVCMOS/LVTTL FANOUT BUFFER .
The ICS83947I-147 is a low skew, 1-to-9 LVCMOS/LVTTL Fanout Buffer and a member of HiPerClockS™ the HiPerClockS™ family of High Performance Clock Solu.

ICS83947I-147 Features

* 9 LVCMOS/LVTTL outputs
* Selectable CLK0 and CLK1 can accept the following input levels: LVCMOS and LVTTL
* Maximum output frequency: 250MHz
* Output skew: 115ps (maximum)
* Part-to-part skew: 500ps (maximum)
* Additive phase jitter, RMS: 0.02ps (typ

ICS83947I-147 Applications

* BLOCK DIAGRAM CLK_EN D Q LE CLK0 CLK1 0 PIN ASSIGNMENT GND GND GND VDDO VDDO Q0 Q1 Q2 32 31 30 29 28 27 26 25 Q0 GND CLK_SEL Q1 CLK0 CLK1 CLK_EN Q3 Q4 Q5 Q6 Q7 Q8 OE VDD GND 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 GND VDDO Q8 GND Q7 VDDO Q6 GND 24 23 22 GND Q3 VDDO Q4 GND Q5 VDDO GND 1 CLK_SE

📥 Download Datasheet

Preview of ICS83947I-147 PDF

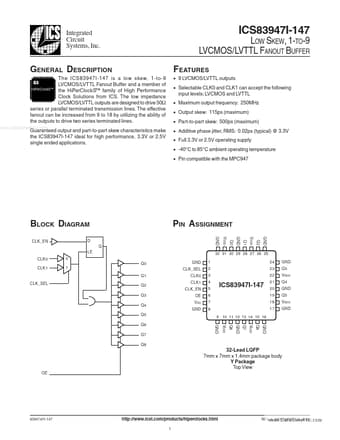

datasheet Preview Page 2 datasheet Preview Page 3
