ICS83940-01 Datasheet, Buffer, Integrated Circuit Systems

ICS83940-01 Features

• Buffer
• 18 LVCMOS outputs, 23Ω typical output impedance
• Output frequency up to 200MHz
• 100ps output skew
• Part to part skew: 850ps
• Selectable LVC

PDF File Details

Part number:

ICS83940-01

Manufacturer:

Integrated Circuit Systems

File Size:

117.13kb

Download:

📄 Datasheet

Description:

1-to-18 lvcmos fanout buffer. The ICS83940-01 is a low skew, 1-to-18 Fanout Buffer and a member of the HiPerClockS™ HiPerClockS™ family of High Performance Clock S

ICS83940-01 Application

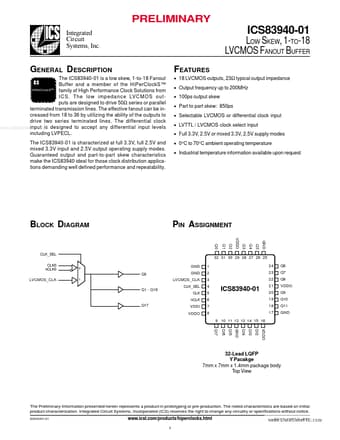

• Applications demanding well defined performance and repeatability. BLOCK DIAGRAM PIN ASSIGNMENT VDDO GND Q0 Q1 Q2 Q3 Q4 Q5 CLK_SEL CLK0 nCLK0 LVC
