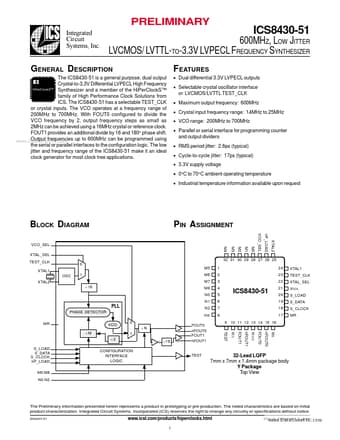

ICS8430-51 Datasheet, Synthesizer, Integrated Circuit Systems

ICS8430-51 Features

• Synthesizer
• Dual differential 3.3V LVPECL outputs
• Selectable crystal oscillator interface or LVCMOS/LVTTL TEST_CLK
• Maximum output frequency: 600MHz
• Crystal i

PDF File Details

Part number:

ICS8430-51

Manufacturer:

Integrated Circuit Systems

File Size:

180.53kb

Download:

📄 Datasheet

Description:

Low jitter lvcmos/lvttl-to-3.3v lvpecl frequency synthesizer. The ICS8430-51 is a general purpose, dual output ,&6 Crystal-to-3.3V Differential LVPECL High Frequency HiPerClockS™ Synthesizer and

ICS8430-51 Application

• Applications BLOCK DIAGRAM VCO_SEL XTAL_SEL TEST_CLK XTAL1 OSC XTAL2 ÷ 16 1 PIN ASSIGNMENT VCO_SEL nP_LOAD XTAL2 M4 M3 M2 M1 M0 32 31 30 29 28 2
