ICS843002-01 - FEMTOCLOCKS CRYSTAL-TO-3.3V LVPECL FREQUENCY SYNTHESIZER

Product Overview

Integrated Circuit Systems

Datasheet Details

Part number	ICS843002-01
Manufacturer	Integrated Circuit Systems
File Size	268.88 KB
Description	FEMTOCLOCKS CRYSTAL-TO-3.3V LVPECL FREQUENCY SYNTHESIZER
Datasheet	ICS843002-01 Datasheet

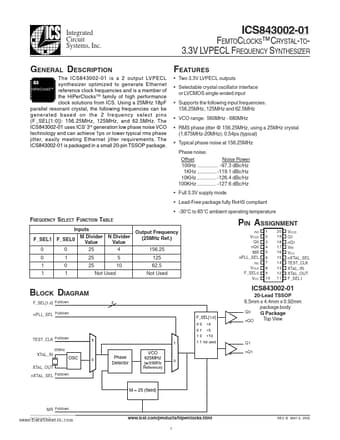

Additional preview pages of the ICS843002-01 datasheet.

Product details

Description

The ICS843002-01 is a 2 output LVPECL synthesizer optimized to generate Ethernet HiPerClockS™ reference clock frequencies and is a member of the HiPerClocksTM family of high performance clock solutions from ICS.

Features

Two 3.3V LVPECL outputs.
Selectable crystal oscillator interface or LVCMOS single-ended input.
Supports the following input frequencies: 156.25MHz, 125MHz and 62.5MHz.
VCO range: 560MHz - 680MHz.
RMS phase jitter @ 156.25MHz, using a 25MHz crystal (1.875MHz-20MHz): 0.54ps (typical).
Typical phase noise at 156.25MHz Phase noise: Offset Noise Power 100Hz -97.3 dBc/Hz 1KHz -119.1 dBc/Hz 10KHz -126.4 dBc/Hz 100KHz -127.6 dBc/Hz.
Ful.
