ICS9248-128 Datasheet - Integrated Circuit Systems

ICS9248-128 Frequency Generator & Integrated Buffers

P in number 1 2 1,2 3,9,16,22, 27,33,39 4 5 6,14 7 1,2 8 1,2 13, 12, 11, 10 15,28,29,31,32, 34,35,37,38 P in name V DDR/X RE F0 M ode GND X1 X2 V DDP CI FS 1 P CICLK _F P CICLK 0 FS 2 P CICLK (4:1) S DRA M 12, S DRA M (7:0) S DRA M 11 CP U_S TOP # S DRA M 10 Type P ower Output Input P ower Input .

ICS9248-128 Features

* - 3 CPU @ 2.5V/3.3V up to 133.3 MHz.

* - 6 PCI @ 3.3V (including 1 free-running)

* - 13 SDRAMs @ 3.3V up to 133.3MHz.

* - 3 REF @ 3.3V, 14.318MHz

* - 1 clock @ 24/14.3 MHz selectable output for SIO

* - 1 Fixed clock at 48MHz (3.3V)

* - 1 IOA

ICS9248-128 Datasheet (185.31 KB)

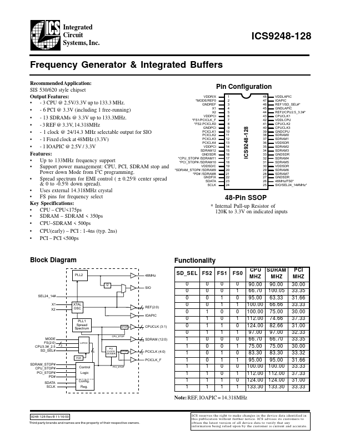

ICS9248-128 Datasheet Preview — Preview of ICS9248-128 PDF

Datasheet Details

Part number:

ICS9248-128

Manufacturer:

Integrated Circuit Systems

File Size:

185.31 KB

Description:

Frequency generator & integrated buffers.
