M1040, M10, VCSO BASED CLOCK PLL WITH AUTOSWITCH

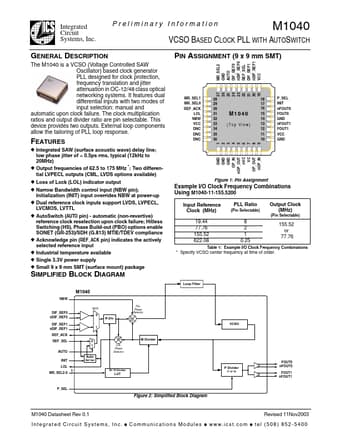

Integrated Circuit Systems, Inc.Preliminary Information M1040 VCSO BASED CLOCK PLL WITH AUTOSWITCH PIN ASSIGNMENT (9 x 9 mm SMT) MR_SEL2 GND AUTO .
The M1040 is a VCSO (Voltage Controlled SAW Oscillator) based clock generator PLL designed for clock protection, frequency translation and jitter atte.

datasheet Preview Page 1 from Datasheet4u.com

M10-40.pdf

M1040 Datasheet Preview — This datasheet PDF includes multiple part numbers: M1040, M10. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

M1040, M10

Manufacturer:

Integrated Circuit Systems

File Size:

436.58 KB

Description:

VCSO BASED CLOCK PLL WITH AUTOSWITCH

Note:

This datasheet PDF includes multiple part numbers: M1040, M10.
Please refer to the document for exact specifications by model.

Features

* dual differential inputs with two modes of input selection: manual and automatic upon clock failure. The clock multiplication ratios and output divider ratio are pin selectable. This device provides two outputs. External loop components allow the tailoring of PLL loop response. FEATURES
* Integ

Applications

* to assure PLL tracking, especially during GR-253 jitter tolerance testing. The recommended maximum phase detector frequency for loop timing mode is 19.44MHz. The LOL pin should not be used during loop timing mode. When LOL is to be used for system health monitoring, the phase detector frequency shou
