M104GNX1R1 - LCD

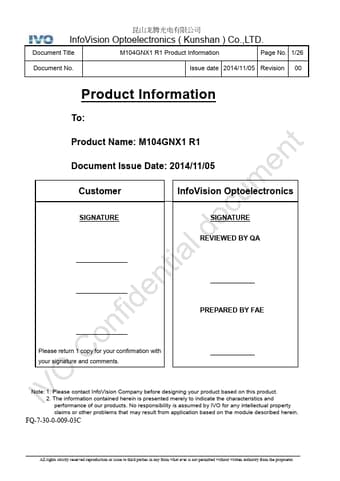

The M104GNX1R1 by IVO is a LCD. Below is the official datasheet preview.

Datasheet Details

Part number	M104GNX1R1
Manufacturer	IVO
File Size	798.46 KB
Description	LCD
Datasheet	M104GNX1R1-IVO.pdf
Additional preview pages of the M104GNX1R1 datasheet.

M104GNX1R1 Product details

Description

-- New Description First issue.Remark ________________________________________________________________________ All rights strictly reserved reproduction or issue to third parties in any form what ever is not permitted without written authority from the proprietor.InfoVision Optoelectronics ( Kunshan ) Co.,LTD.Document Title M104GNX1 R1 Product Information Page No.3/26 Document No.Issue date 2014/11/05 Revision 00 CONTENTS 1.0 General Descriptions 4 2.0 Absolute Maximum Ratings

Features

Supported XGA Resolution.
LVDS Interface.
Compatible with RoHS Standard 1.3 Product Summary Items Specifications Unit Screen Diagonal 10.4 inch Active Area (H x V) 211.2 x 158.4 mm Number of Pixels (H x V) 1,024 x 768 - Pixel Pitch (H x V) 0.2063 x 0.2063 mm Pixel Arrangement R. G. B. Vertical Stripe - Display Mode White Luminance Normally White 350 (Typ. ) cd /m2 Contrast Ratio 900 (Typ. ) - Response Time 16 (Typ. ) ms Input Voltage 3.3 (Typ. ) V Powe.
