IDT74FCT2245T FAST CMOS OCTAL BIDIRECTIONAL TRANSCEIVERS

The IDT octal bidirectional transceivers are built using an advanced dual metal CMOS technology. The FCT245T/ FCT2245T, FCT640T and FCT645T are designed for asynchronous two-way communication between data buses. The transmit/receive (T/R) input determines the direction of data flow through the bidi.

IDT74FCT2245T Features

* Common features:

* Low input and output leakage ≤1µA (max.)

* CMOS power levels

* True TTL input and output compatibility

* VOH = 3.3V (typ.)

* VOL = 0.3V (typ.)

* Meets or exceeds JEDEC standard 18 specifications

* Product available

IDT74FCT2245T Datasheet (157.08 KB)

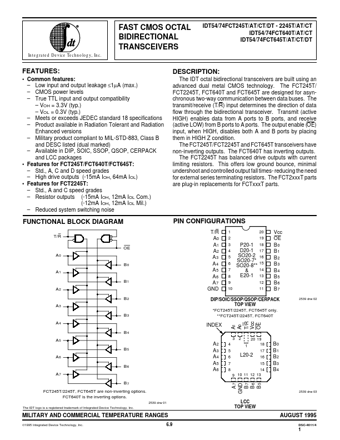

IDT74FCT2245T Datasheet Preview — Preview of IDT74FCT2245T PDF

Datasheet Details

Part number:

IDT74FCT2245T

Manufacturer:

Integrated Device Tech

File Size:

157.08 KB

Description:

Fast cmos octal bidirectional transceivers.
