IDT74FCT2244T, FAST CMOS OCTAL BUFFER/LINE DRIVERS

IDT54/74FCT240/244T/AT/CT/DT - 2240/2244T/AT/CT, IDT54/74FCT540/541/2541T/AT/CT FAST CMOS OCTAL BUFFER/LINE DRIVER MILITARY AND COMMERCIAL TEMPERATURE.
The IDT octal buffer/line drivers are built using an advanced dual metal CMOS technology.

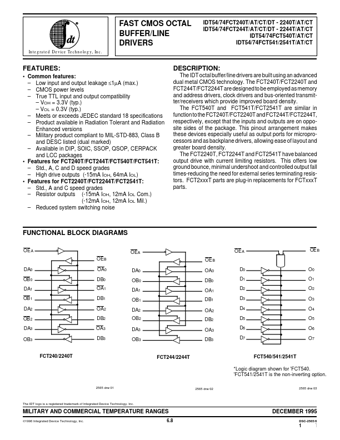

datasheet Preview Page 1 from Datasheet4u.com

IDT74FCT2244T_IntegratedDeviceTechnology.pdf

IDT74FCT2244T Datasheet Preview — Preview of IDT74FCT2244T PDF

Datasheet Details

Part number:

IDT74FCT2244T

Manufacturer:

Integrated Device Technology

File Size:

185.31 KB

Description:

FAST CMOS OCTAL BUFFER/LINE DRIVERS

Features

* Common features:
* Low input and output leakage ≤1µA (max. )
* CMOS power levels
* True TTL input and output compatibility
* VOH = 3.3V (typ. )
* VOL = 0.3V (typ. )
* Meets or exceeds JEDEC standard 18 specifications
* Product available
